Types of Concrete Retaining Walls We Build
Not every retaining wall is the same, and what works for your neighbour’s 600mm garden bed won’t cut it if you’re trying to hold back 2 meters of earth on a sloped driveway. The type of concrete retaining wall you need depends on how high it needs to be, what’s pushing against it, and what you’re planning to do with the space.
Poured Concrete Cantilever Walls are what most people get when they need something strong and permanent. These are the reinforced concrete walls with a solid footing that extends back under the soil – they use the weight of the earth itself to stay stable. They’re the go-to for anything over a meter high and they’ll handle Townsville’s wet season without breaking a sweat.
Concrete Sleeper Walls work well for smaller heights – usually under 1.2 meters. They’re quicker to install and cost less than full poured walls, but they’ve got limits on how much load they can take.
Reinforced Masonry Block Walls give you options for different finishes and they’re solid when they’re built right with steel reinforcement and proper footings. They handle commercial and residential jobs and you can render or paint them however you like.
L-Shaped and Gravity Walls are specialised designs. L-shaped walls are basically cantilever walls that use less concrete by relying on geometry. Gravity walls use sheer mass and weight to hold everything back – they’re simpler but need more space and material.

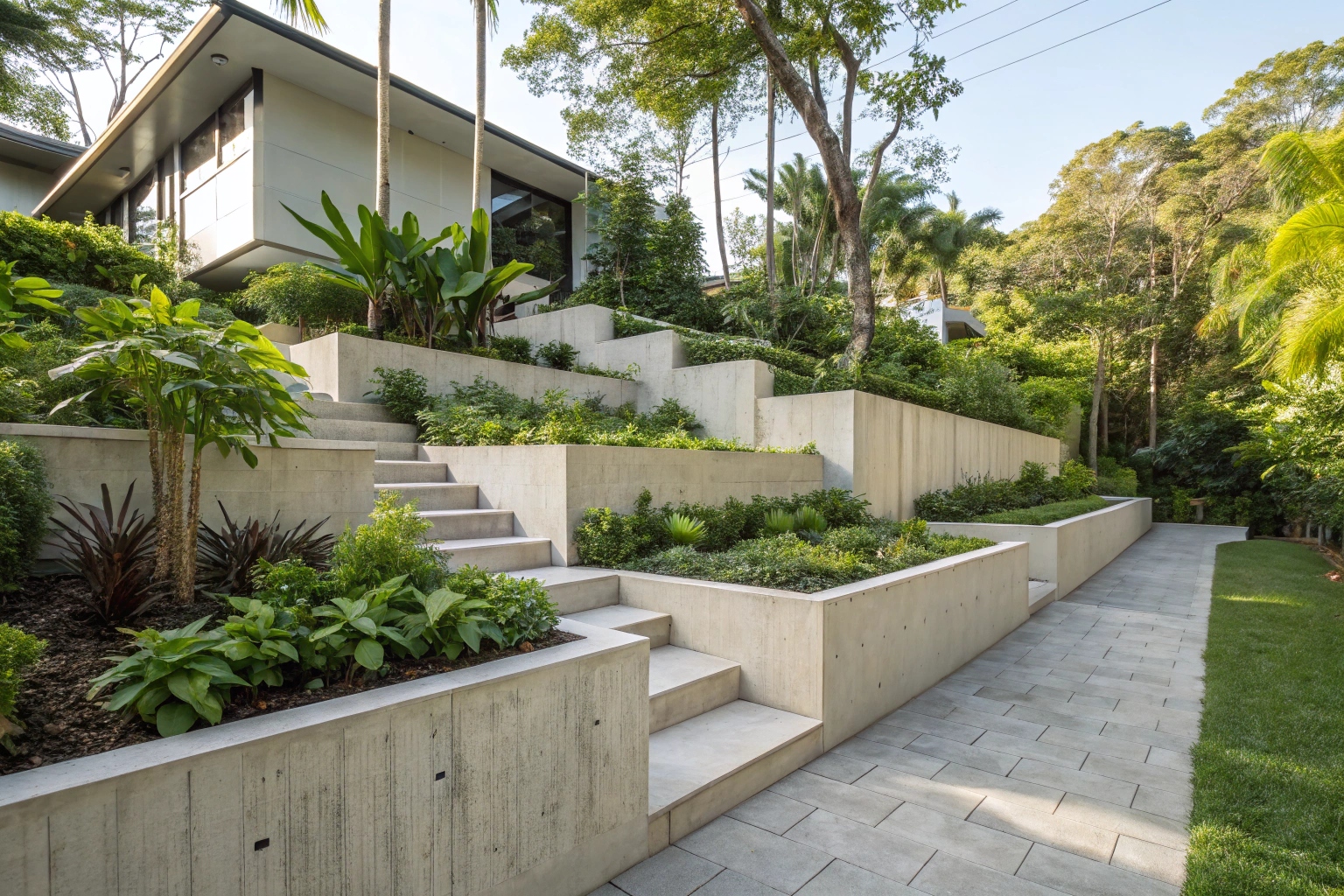

For extreme slopes or serious height, we’ll design tiered wall systems – multiple walls stepping back up the slope. This keeps each wall at a manageable height and reduces the pressure on any single structure.
Why Concrete Beats Everything Else for Retaining Walls
You’ve got options when it comes to retaining wall materials – timber sleepers, steel, block, gabion cages – but there’s a reason concrete dominates the serious retaining wall jobs in Townsville. It handles things other materials just can’t.
Strength matters when you’re holding back tons of saturated soil during the wet season. Concrete retaining walls are engineered to take massive loads – the soil pressure, water pressure, and surcharge loads from driveways or pools sitting above them. Timber rots, steel rusts, but concrete keeps doing its job for 50+ years.
Cyclone and storm resistance isn’t optional here. When wind-driven rain hits and the ground’s completely saturated, you need something that won’t shift, buckle, or wash out. Concrete walls anchored to proper footings aren’t going anywhere.
Low maintenance means you’re not replacing rotted sleepers every 8-10 years or repairing rust damage. You build it once, check the drainage annually, and it’s done. No painting, no treating, no replacing sections that’ve failed.
Cost-effective for height – once you’re going over 1.5 meters, concrete becomes the smart money choice. Other materials need so much reinforcement and support work that concrete ends up cheaper and stronger.
The reactive clay soils around Townsville move with moisture changes, the heat and UV are relentless, termites destroy timber, and coastal salt air corrodes metal. Concrete doesn’t care about any of it. It sits there doing what it was designed to do, year after year, wet season after wet season.
When You Need Engineering (And When You Don't)
How We Actually Build These Walls
Finishes, Maintenance, and What to Expect Long-Term
Once your concrete retaining wall’s built, you’ve got options for how it looks and minimal work to keep it performing.

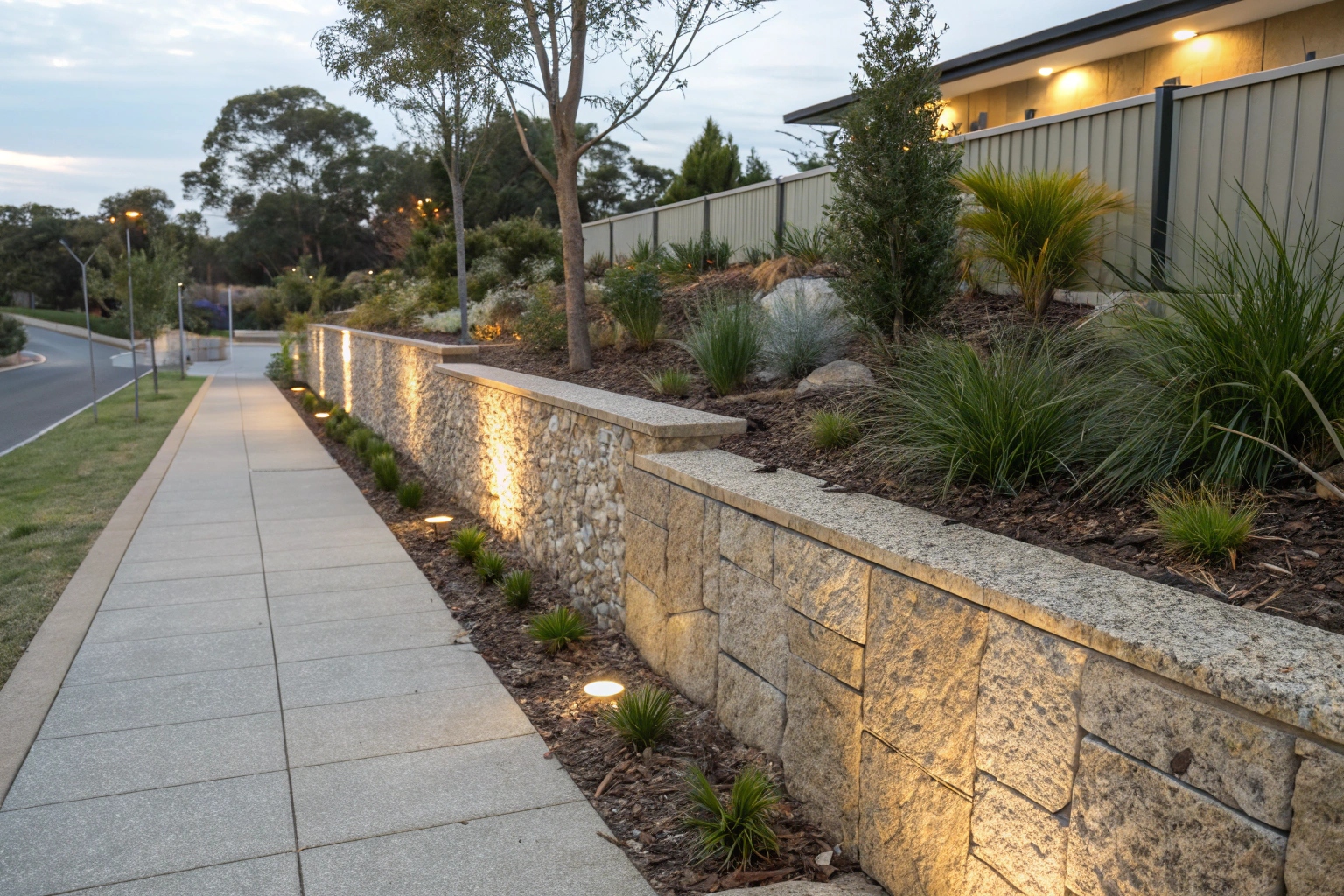

Finish options range from basic to decorative. A smooth trowel finish is clean and simple – works for most residential jobs and you can paint or render over it later if you want. Off-form concrete leaves the texture from the formwork – it’s got character and hides minor imperfections. Rendered and painted finishes let you match your house or fence colours. Exposed aggregate panels or stone cladding give you that high-end look if the wall’s visible from the street or entertainment areas.
Natural concrete or colored concrete mixed during the pour are both options – just know that UV fading happens here, so lighter colours hold up better in Townsville’s sun.
Maintenance is minimal if the wall’s built right. Check your weep holes once a year – usually at the end of wet season – to make sure they’re not blocked. Look for any cracks or signs of movement, though properly engineered walls shouldn’t have issues. Pressure clean the face every few years if you want it looking fresh. If you’ve got a decorative finish that’s been sealed, you might need to reseal every 5-7 years.
Expected lifespan is 50+ years for properly constructed concrete retaining walls. We’ve got walls we built 20 years ago that look and perform like they did day one. The reinforcement’s protected inside the concrete, drainage keeps water pressure off, and the structure’s engineered to handle Townsville’s conditions. You’re building something that’ll outlast you.
Common Questions About Concrete Retaining Walls (FAQs)
Depends on height, length, and site access. Walls under 1 meter run roughly $350-$600 per linear meter. Engineered walls over 1 meter are $600-$1,200+ per meter because of the engineering, reinforcement, and extra work involved. Difficult access, poor soil, or walls over 2 meters push costs higher. We give fixed quotes after a site inspection.
Usually yes for walls over 1 meter or any wall within setback areas from boundaries. Engineering certification’s required over 2 meters. We handle the paperwork and know what Townsville Council wants to see.
1-3 weeks for most residential walls once approvals are done. Engineering and council approval adds 2-4 weeks upfront. Larger commercial walls or difficult sites take longer.
We can, but it’s not ideal. Drainage work’s harder when the ground’s saturated, and concrete curing gets complicated with constant rain. We prefer dry season (April-November) when conditions are predictable.
Small hairline cracks are normal as concrete cures. Structural cracks mean something’s wrong – usually drainage failure or poor footing design. Properly engineered walls with correct drainage don’t develop structural cracks. That’s why engineering matters.
Yes, if the drainage’s designed properly. The wall holds the soil and the drainage system manages water so it doesn’t wash around or under the structure.
Get Your Retaining Wall Done Right
You’ve got a sloped property that’s not working for you, erosion that’s getting worse every wet season, or plans that need level ground to happen. Putting off a retaining wall doesn’t make it cheaper or easier – it just means you’re losing more usable space and watching the problem get bigger.
We’ve built concrete retaining walls across Townsville for over two decades. We know the soil conditions in Annandale, the drainage challenges in Hermit Park, the slope issues in Mount Louisa. We work with structural engineers, handle council approvals, and build walls that’ll still be standing strong 50 years from now.
Free site assessment – we’ll come out, look at your property, talk through what you’re trying to achieve, and give you honest advice on what needs to happen. If you don’t need a massive engineered wall, we’ll tell you. If your drainage’s the real problem, we’ll explain that too.
Transparent quotes with everything included – engineering, materials, labour, drainage, council fees if needed. No surprise costs halfway through the job.
Licensed, insured, and local – we’re not going anywhere after your wall’s built. You’ll have our number if you ever need anything.
Call us or fill out the quote form. Let’s get your property sorted before next wet season hits and you’re dealing with the same problems all over again.
